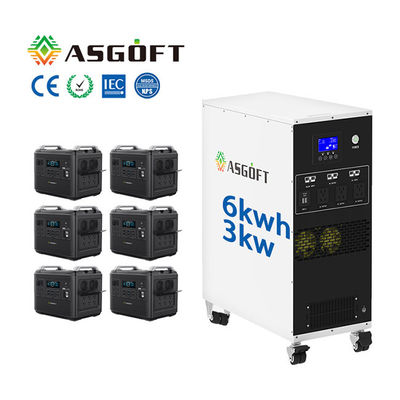

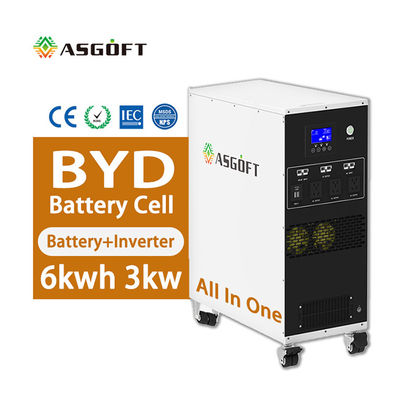

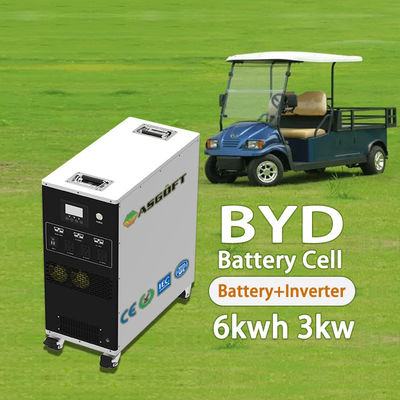

All In One Battery Energy Storage 6Kwh Lifepo4 Battery Pack Inverter 3000W MPPT
|
Product Specifications |
||
| Model |
BESS-ASM-6000WH-3000W
|
|
|
Battery Pack Parameters |
Nominal voltage
|
25.6V
|
|
Nominal capacity
|
235Ah
|
|
|
Rated Energy
|
6016Wh | |
|
Charge cut off voltage
|
29.2V (cut-off current 5A) | |
|
Standard charging current
|
100A | |
|
Maximum charging current
|
150A | |
|
Discharge cut-off voltage
|
20V | |
|
Standard discharge current
|
100A
|
|
|
Maximum charging current
|
150A | |
|
Cycle life
|
>3000 Cycle @80%DOD, at 25°C
|
|
|
Battery Type
|
Lithium iron phosphate
|
|
|
Operating temperature
|
Charge:0～55℃
|
|
|
Discharge:-20～65℃
|
||
|
Inverter
parameters
|
Rated power
|
3200VA/3000W
|
|
Input voltage
|
170-280VAC
|
|
|
Input frequency
|
50Hz/60Hz
|
|
|
The output voltage
|
230VAC
|
|
|
Output frequency
|
50Hz/60Hz
|
|
|
Efficiency
|
93%
|
|
|
Output waveform
|
Pure sine wave
|
|
|
PV
parameters
|
Rated power
|
3000W
|
|
Open circuit voltage
|
90V-450VDC
|
|
|
Maximum charging current
|
80A
|
|
|
Efficiency
|
98%
|
|
|
Size
|
670*560*270mm
|
|
|
Weight
|
86.3±0.5KG
|
|
|
Cool down
|
Air cooling
|
|
|
Shell material
|
SPCC cold rolled steel plate
|
|
