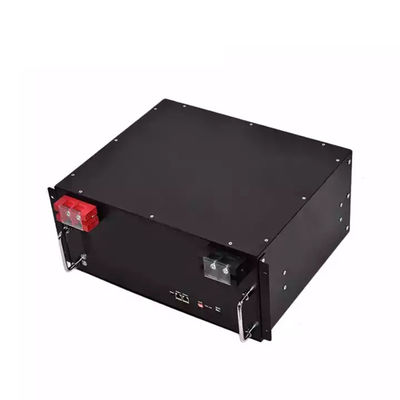

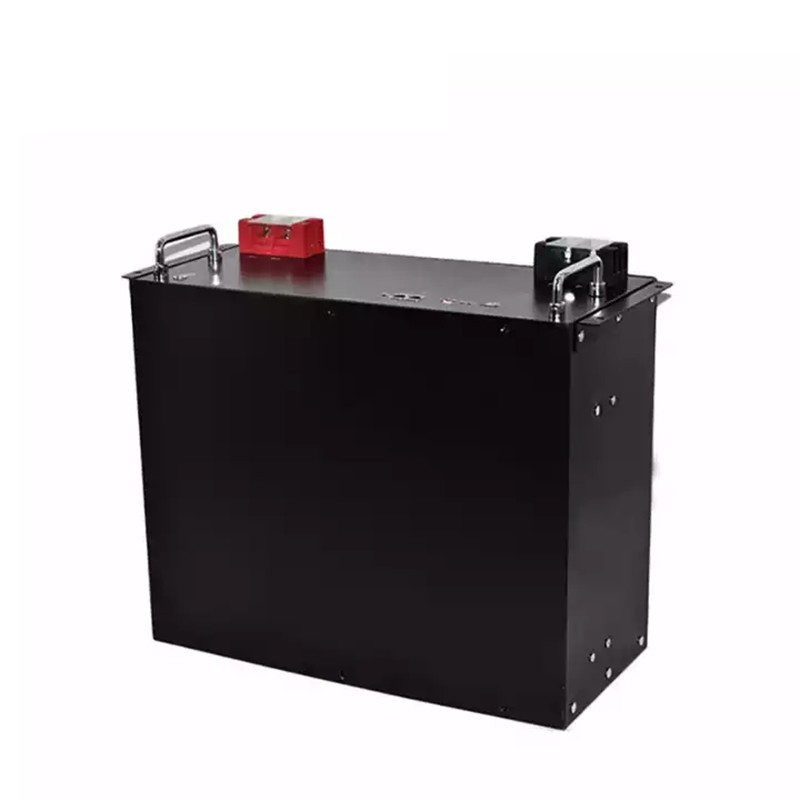

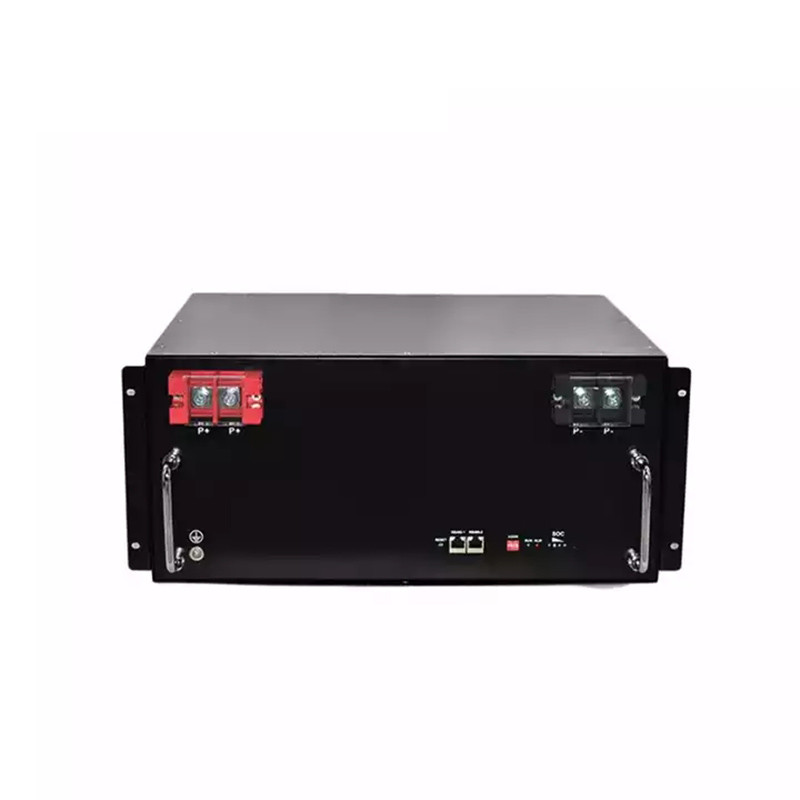

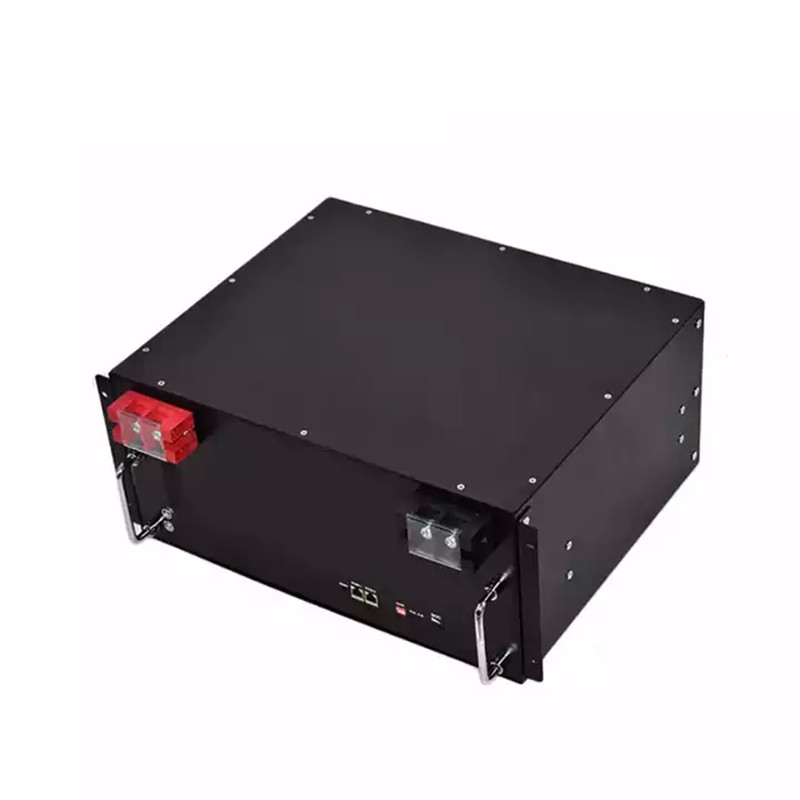

Smart cheap Lifepo4 battery 48v / 51.2v server rack mounted 5kw 100a 100ah lithium ion battery for solar system
Description :
48V Rack Mount Battery has advantage like Simple installation, convenient expansion and investment saving. The rack type UPS power supply enables the power supply system to be on demand, enabling the capacity to achieve "dynamic growth" with the development of business, which not only meets the expansion needs of later business, but also reduces the initial purchase cost of users. Parallel redundancy, stable operation and high reliability. The application of rack type UPS power supply in integrated power distribution cabinet requires high reliability. The rack type UPS is specially designed for the data center. Its main design feature is integration, which combines the battery with the host to save space. The rack type UPS is most commonly placed in the cabinet together with the electrical load.
Feature :
Specification :
| Model | ASP-48100 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah |
| Energy | 5120Wh |
| Series or Parallel Connection | 16S1P |
| Maximum Charge Current | 100A |
| Charge Current (-20 to - 10 ºC) | ≤0.05C |
| Recommended Charge Voltage | 56V-57.6V |
| BMS Charge Voltage Cut-Off | 57.6V (3.75±0.025vpc) |
| Reconnect Voltage | 54.6V (3.34 ±0.05vpc) |
| Dimensions (L x W x H) | 440*435*222mm (17.3x17.1x8.74”) |
| Weight | 70KG with wooden packing |
| Communication Interface | RS485 (Optional) |
| Case Material | Metal |
| Enclosure Protection | IP54 |
| Maximum Continuous Discharge Current | 100A |
| BMS Discharge Current Cut-Off | 105A |
| Reconnect Voltage | 45V |
| Discharge Temperature | -20 to 60ºC (-4 to 140 ºF) |
| Charge Temperature | 0 to 45ºC (32 to 113 ºF) |
Product Details:
1. Q: Can you accept OEM and ODM Service?
A: Yes, we supply OEM&ODM service as clients requirement.
2. Q: Can we get samples for test?
A: Yes, we offer sample.
3. Q: What’s your payment term?
A: T/T, Moneygram,West Union, Paypal etc.
4. Q: What's your warranty for products?
A: Generally speaking, it's one year's warranty, for quality problems, we will send you a new one.
5. Q: How long will be the delivery?
A: Usually delivery in 5-10 days, but could be changed according to the quantity or other things.
6. Q: How do you control your product quality.
A: All power bank will be tested twice during the whole production.
