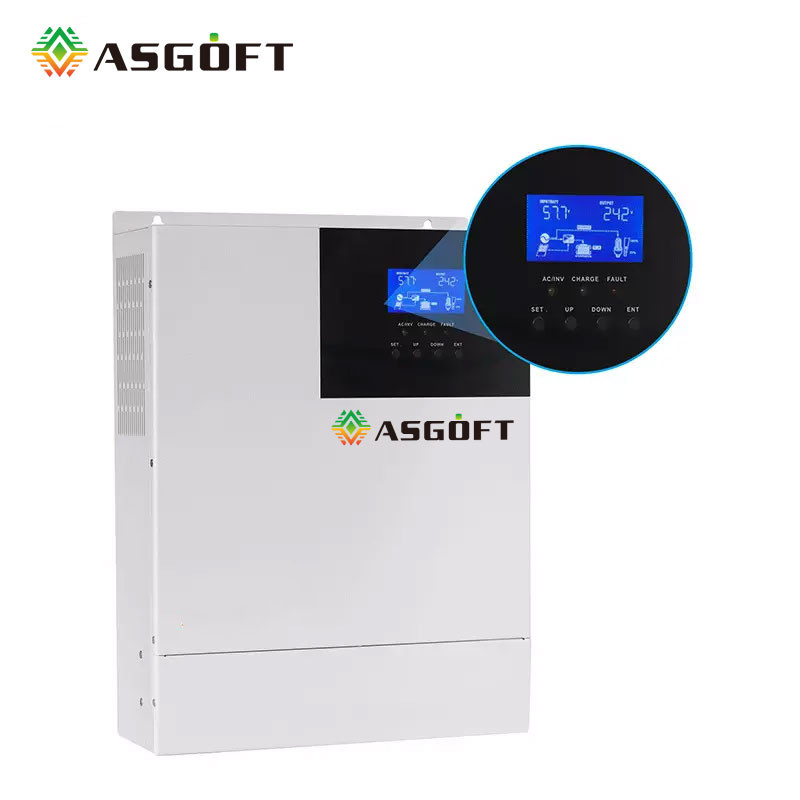

Off Grid MPPT 24v Solar Inverter Built In MPPT Solar Controller With 220/ 230Vac
Description:
Specifications:
| Models | ASI2420S60-100 |
| Battery Input | |
| Battery Type | Sealed/FLo o d/GEL/LFP/Ternary |
| Rated Battery Input Voltage | 24V ( Minimum Start up Voltage 22V) |
| Max.Hybrid Charging Current | 120A |
| Battery Voltage Range | 20Vd c~ 33Vd c ± 0 .3Vd c(Und er volt ag e Warning / Shutd own Vo lt ag e/ Over volt ag e Warning / Over vo lt ag e Recover y...) |
| Solar Input | |
| Maximum PV Open-circuit Voltage |
100Vdc |
| PV Working Voltage Range | 30-100Vdc |
| MPPT Voltage Range | 30-85Vdc |
| Maximum PV Input Current | 40A |
| Maximum PV Input Power | 1600W |
| Maximum PV Charging Curr ent | 60A |
| AC Input (generator/grid ) | |
| Mains Maximum Char ging Current |
60A |
| Rated Input Voltage | 220/ 230Vac |
| Input Voltage Range | UPS Mains Mode :(170Vac~280V ac)土2% APL Generator Mode :(90Vac-280Vac)±2% |
| Frequency | 50Hz/ 60Hz (Automatic Detection) |
| Mains Charging Efficiency | > 95% |
| Switch Time (bypass and inverter) | 10ms(Typical Value) |
| Maximum Bypass Overload Current | 30A |
| AC Output | |
| Output Voltage Waveform | Pure Sine Wave |
| Rated Output Voltage | 230Vac (200/208/220/240V ac) |
| Rated Output Power(VA) | 2000(1750/1800/1900/2000 ) |
| Rated Output P ower(W) | 2000(1750/1800/1900/2000 ) |
| Peak Power | 4000VA |
| On-load Motor Capacity | 1HP |
| Output Frequency Range(Hz) | 50Hz土0.3Hz/60Hz±0.3Hz |
| Maximum Efficiency | >92% |
| No-load Loss | Non Ener gy-saving Mode: ≤50W Ener gy-saving Mode :≤ 25W (Manual Setup ) |
| General | |
| Certificate | CE(IEC 62109-1) |
| EMC Certification Level | EN61000, C2 |
| Working Temperature Range | -15°C ~ 55°C |
| Storage Temperature Rang | -25°C ~ 60°C |
| Humidity Range | 5% to 95%(Conformal Coating Protection) |
| Dimensions | 378mm*280mm*103mm |
| Weight (K G) | 6.8 |

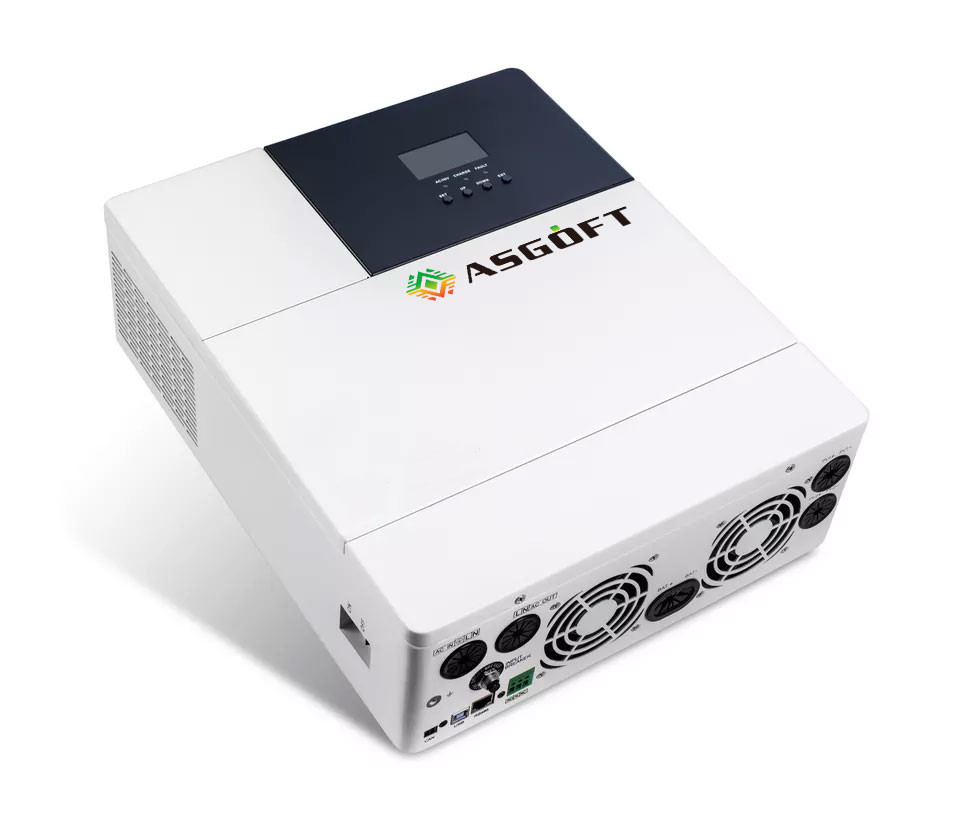

Product Details :
