UL Certificate Home Use 5kw 10kw 20kw Hybrid Solar Energy System Solar PV Storage LiFePO4 Lithium Battery with Inverter
Description:
Introducing our UL-certified home solar energy system, featuring a hybrid design with solar PV storage and LiFePO4 lithium battery. Available in 5kW, 10kW, and 20kW capacities, this system comes with an inverter for seamless power conversion. With a 10-year warranty and over 6000 cycles, our LiFePO4 lithium battery ensures long-lasting performance. Experience the benefits of clean and sustainable energy with our advanced solar energy solution for your home.
Product Paramenter:
| Product name | UL Certification Solar Energy Storage Power System Home 50Ah 10kWh 15kWh 20kWh High Voltage Stacked LiFePO4 Battery | ||
| Number of modules | 2 | 3 | 4 |
| Capacity | 50Ah | ||
| Battery Type | Lifepo4 | ||
| Working Range(V) | 171V-225V | 240V~345.6V | 320V~460.8V |
| Working Temperature(℃) | Charge: 0℃~+55℃ Discharge:-20℃~+60℃ | ||
| Nominal Capacity(kWh) | 10.2kWh | 15.3kWh | 20.4kWh |
| Max. Charge Current(A) | 25A | ||
| Max. Discharge Current(A) | 25A | ||
| Weight | 110kg | 160kg | 210kg |

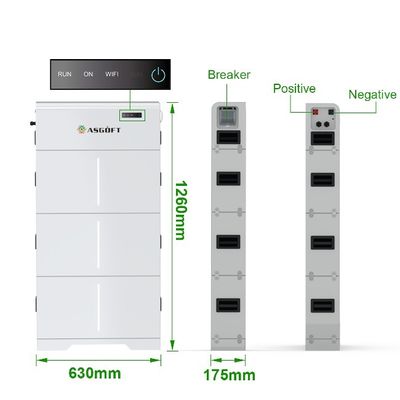

| Dimension(W'D*L) | 630*940*175mm | 630*1260*175mm | 630*1580*175mm |
| IP Protection | IP65 | ||
| Storage | -10°C~+45°C | ||
| Warranty | 10 Years | ||
| Temperature("C) Cycle Life | >6000. 25℃, 0.5C 85%DOD | ||
| Recycleable | Fully recyclable at the end of life | ||
| Istallation | Floor Installation / Wall Installation | ||

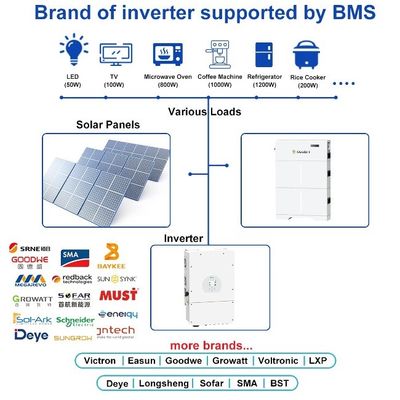

| Compatible Inverters | Victron/SMA/Goodwe/Imeon/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye etc. | ||
| Certification | TUV/CE/IEC62619/UN38.3/UL | ||
Products Description:
