UL Certification 10 Years Warranty USA Home Hybrid 10kw 15kw 20kw High Voltage Ess Byd 20 kWh Lithium Battery
Description:
Our home energy storage batteries are specially designed for solar systems and come with UL certification and a 10-year warranty. These batteries have an impressive cycle life of over 6000 cycles and are available in three different capacities: 10kWh, 15kWh, and 20kWh. Whether you need them for residential, industrial, or commercial solar energy storage, these batteries are versatile enough to meet your needs. They can be easily stacked and wall-mounted, allowing for flexible installation options. With high-quality BYD cells and direct sourcing from the factory, these batteries also support OEM/ODM orders.
Product Paramenter:
| Product name | UL Certification 10 Years Warranty USA Home Hybrid 10kw 15kw 20kw High Voltage Ess Byd 20 kWh Lithium Battery | ||
| Number of modules | 2 | 3 | 4 |
| Capacity | 50Ah | ||
| Battery Type | Lifepo4 | ||
| Working Range(V) | 171V-225V | 240V~345.6V | 320V~460.8V |
| Working Temperature(℃) | Charge: 0℃~+55℃ Discharge:-20℃~+60℃ | ||
| Nominal Capacity(kWh) | 10.2kWh | 15.3kWh | 20.4kWh |
| Max. Charge Current(A) | 25A | ||
| Max. Discharge Current(A) | 25A | ||
| Weight | 110kg | 160kg | 210kg |

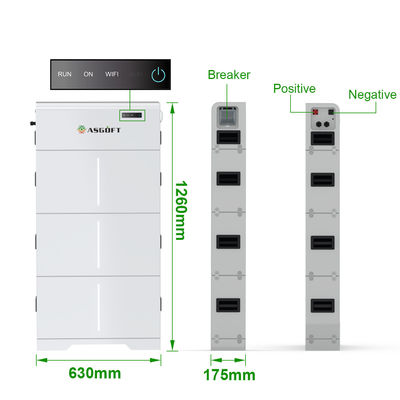

| Dimension(W'D*L) | 630*940*175mm | 630*1260*175mm | 630*1580*175mm |
| IP Protection | IP65 | ||
| Storage | -10°C~+45°C | ||
| Warranty | 10 Years | ||
| Temperature("C) Cycle Life | >6000. 25℃, 0.5C 85%DOD | ||
| Recycleable | Fully recyclable at the end of life | ||
| Istallation | Floor Installation / Wall Installation | ||
| Compatible Inverters | Victron/SMA/Goodwe/Imeon/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye etc. | ||
| Certification | TUV/CE/IEC62619/UN38.3/UL | ||
Products Description:
FAQ:
Q1: Do you support OEM?
