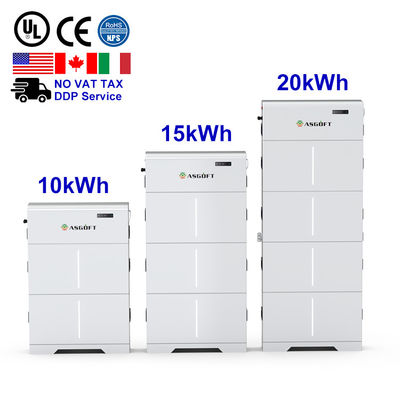

UL Certification Solar Energy Storage Power System Home 50Ah 10kWh 15kWh 20kWh High Voltage Stacked LiFePO4 Battery
Description:

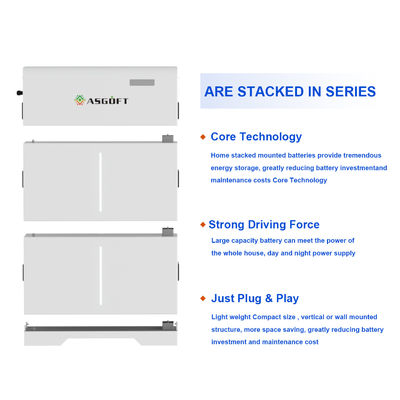

Introducing our UL-certified home energy storage batteries with a 10-year warranty and over 6000 cycles. Available in 10kWh, 15kWh, and 20kWh capacities, these batteries are suitable for residential, industrial, and commercial solar energy systems. Featuring BYD cells, they offer stackability and wall-mounting options, directly sourced from the factory to support OEM/ODM orders.
Product Paramenter:
| Product name | UL Certification Solar Energy Storage Power System Home 50Ah 10kWh 15kWh 20kWh High Voltage Stacked LiFePO4 Battery | ||
| Number of modules | 2 | 3 | 4 |
| Capacity | 50Ah | ||
| Battery Type | Lifepo4 | ||
| Working Range(V) | 171V-225V | 240V~345.6V | 320V~460.8V |
| Working Temperature(℃) | Charge: 0℃~+55℃ Discharge:-20℃~+60℃ | ||
| Nominal Capacity(kWh) | 10.2kWh | 15.3kWh | 20.4kWh |
| Max. Charge Current(A) | 25A | ||
| Max. Discharge Current(A) | 25A | ||
| Weight | 110kg | 160kg | 210kg |
| Dimension(W'D*L) | 630*940*175mm | 630*1260*175mm | 630*1580*175mm |
| IP Protection | IP65 | ||
| Storage | -10°C~+45°C | ||
| Warranty | 10 Years | ||
| Temperature("C) Cycle Life | >6000. 25℃, 0.5C 85%DOD | ||
| Recycleable | Fully recyclable at the end of life | ||
| Istallation | Floor Installation / Wall Installation | ||
| Compatible Inverters | Victron/SMA/Goodwe/Imeon/Solis/SAJ/Growatt/Luxpower/Voltronic/Deye etc. | ||
| Certification | TUV/CE/IEC62619/UN38.3/UL | ||
Products Description:
FAQ:
Q1: Do you support OEM?
