20KW 30KW high voltag solar system 50KW 75KW 100KW 750kw Industrial Solar Energy System
Description:

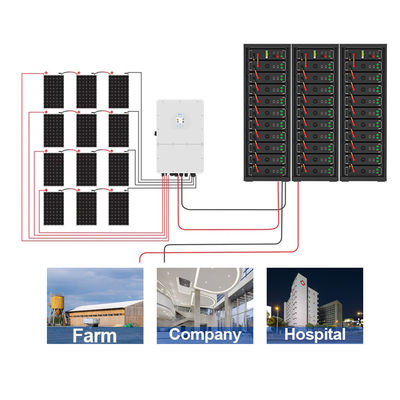

When it comes to industrial use, our Commercial and Grid-Tied/Off-Grid Energy Storage System is a flexible, efficient, and reliable solution. In industrial production, a stable power supply is essential, as power outages can cause production interruptions, equipment damage, and data loss. Therefore, our energy storage system can help businesses ensure a stable power supply, ensuring continuity and reliability of production.
With a capacity of 15-750kWh, which can be easily expanded.
Despite its high performance and scalability, our energy storage system has a compact design that is smaller than many similar products in the industry. Its high energy density allows for a 20% reduction in volume and a 15% reduction in weight compared to similar products, making it easier to install and transport.
Features :
Specifications:
| Nominal Voltage | 512V-530V |
| Rated Capacity | 100Ah |
| Stored energy | 50 kWh |
| Cycle life@100%DOD | 4000 times |
| Weight | 650 KG |
| Internal Resistance | ≤40 mΩ |
| Max. Charge Current | 50 A |
| Max. Discharge Current | 50 A |
| Charge Cut-off Voltage | 584V |
| Discharge Cut-Off Voltage | 400V |
| Dimensions | 600*600*1750mm |
| Operating Temperature Range | 20~60℃ |
| Charge | 0~55℃ |
| Discharge | -20~60℃ |
| Communication | RS485, CAN |
| Life Expectancy (years) | 10-20 years max |
| x. Efficiency | 97.60% |
| Euro Efficiency | 97.00% |
| MPPT Efficiency | 99.90% |
| Grid Regulation | VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150 |
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
Product Details :
