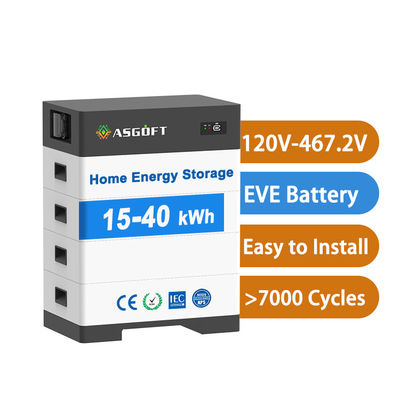

Stacked Lithium Battery 15kwh -40kwh Power Bank 100Ah 153.6V-409.6V Ess Solar Energy Storage System
Description:
High Voltage and Low Losses:
With a small high-voltage range from 120V to 467.2V, our product reduces current and enhances conversion efficiency, resulting in low power losses.
Flexible Capacity Options:
Our solution offers flexible capacity options, ranging from 15kWh to 40kWh, allowing customers to choose the suitable capacity based on their specific needs.
Wide Compatibility with Inverters:

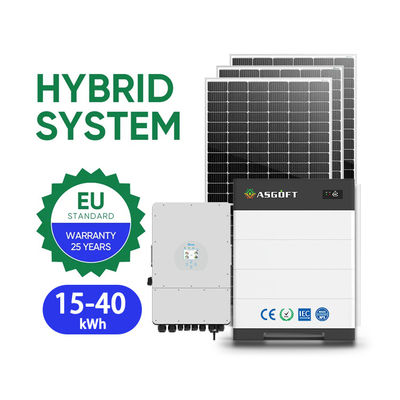

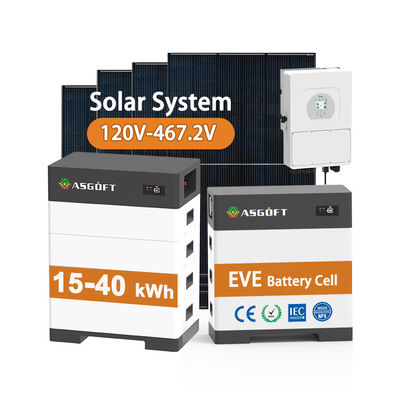

Our product is compatible with most mainstream inverter brands, ensuring seamless integration into existing solar power systems or energy storage setups.
98% Efficiency:
The intelligent master-slave architecture of our BMS (Battery Management System) effectively minimizes equipment no-load losses, enabling an impressive efficiency rating of over 98%.
Compact and Exquisite Appearance:

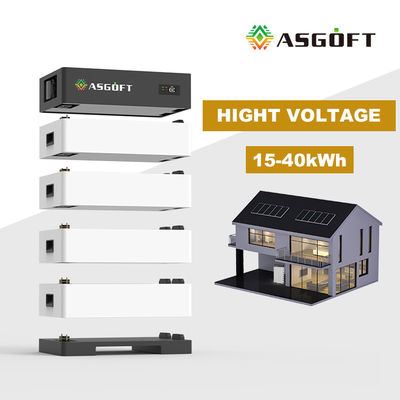

Our product features a sleek and compact design, reducing its volume by 20% compared to similar products. It not only saves space but also adds a touch of elegance to any installation.
Simple Installation:
Thanks to wireless module connection and high-voltage boxes, the installation process is simplified, eliminating the need for complex wiring. This saves time and effort during setup.
7000 Cycle Life:
Utilizing EVE grade A cells, our product boasts an impressive cycle life of over 7000 cycles at 75% Depth of Discharge (DOD) and over 5000 cycles at 80% DOD, providing reliable and long-lasting performance.
Features :
Specifications:
| Nominal Voltage | 153.6V 204.8V 256V 307.2V 358.4V 409.6V |
| Nominal capacity | 100AH |
| Nominal energy | 15kWh 20kWh 25kWh 30kWh 35kWh 40kWh |
| Dimension(L*W*H, MM) |
610*386*650 mm 610*386*795 mm 610*386*940 mm 610*386*1085 mm 610*386*1230 mm 610*386*1375 mm |
| Battery Cell specifications: | EVE lithium iron phosphate battery |
| Max charging Current | 50A |
| Max Discharging Current | 60A |
| Internal resistance | ≤40 mΩ |
| Operating temperature(charge) | -22°C ~ 55°C |
| Storage temperature | -20°C ~ 25°C |
| Cell overcharge Protection |
Overcharge detection voltage
overcharge detection delay time
Overcharge release voltage
|
| Cell over-discharge Protection | Yes |
| Over-current Protection | Yes |
| Short Protection | Yes |
| Temperature Protection | Yes |
| Communication | CAN and RS485 |
| Cycle lfe | 8000 times(25°C@50%DOD,0.2C) |
| 6000 times(25°C@80%DOD,0.2C) | |
| 4000 times(25°C@100%DOD,1C) | |
| Life Span |
15-25 years Life span. Warranty: 5-10 years (Optional) |
Product Details :
