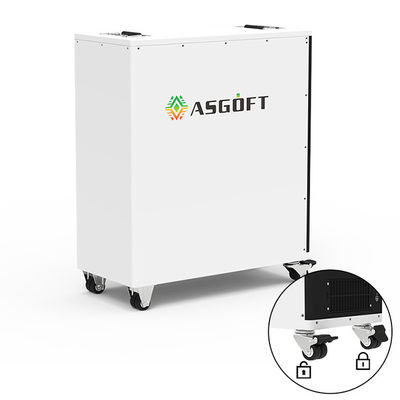

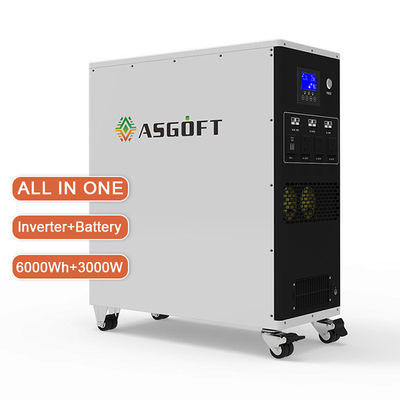

6kwh Lithium-ion Battery All in One portable power station Hybrid Inverter 3kw
This product is a 6kwh capacitor 3kw inverter, that can meet the home, outdoor commercial use, or agricultural use, and can charge the car.
It has the function of a quick pull plug and quick plug.
It can be mobile or fixed.
The price/performance ratio is very high.
It is a compact home energy storage solution and a portable outdoor power station, catering to various applications, including home energy storage, high-capacity outdoor mobile power needs, and industrial and agricultural charging equipment.
With an impressive capacity of 6000Wh, it utilizes high-quality BYD LiFePO4 battery cells, ensuring safety and reliability.
Equipped with a 3000W bidirectional inverter, it provides sufficient AC output power to simultaneously run multiple 220-240Vac household appliances, such as two air conditioners, one refrigerator, three fans, one television, and PC, and one rice cooker, among others.
Product Specifications | ||
| Model | BESS-ASM-6000WH-3000W | |
Battery Pack | Nominal voltage | 25.6V |
Nominal capacity | 235Ah | |
Rated Energy | 6016Wh | |
Charge cut off voltage | 29.2V (cut-off current 5A) | |
Standard charging current | 100A | |
Maximum charging current | 150A | |
Discharge cut-off voltage | 20V | |
Standard discharge current | 100A | |
Maximum charging current | 150A | |
Cycle life | >3000 Cycle @80%DOD, at 25°C | |
Battery Type | Lithium iron phosphate | |
Operating temperature | Charge:0～55℃ | |
Discharge:-20～65℃ | ||
Inverter parameters | Rated power | 3200VA/3000W |
Input voltage | 170-280VAC | |
Input frequency | 50Hz/60Hz | |
The output voltage | 230VAC | |
Output frequency | 50Hz/60Hz | |
Efficiency | 93% | |
Output waveform | Pure sine wave | |
PV parameters | Rated power | 3000W |
Open circuit voltage | 90V-450VDC | |
Maximum charging current | 80A | |
Efficiency | 98% | |
Size | 670*560*270mm | |
Weight | 86.3±0.5KG | |
Cool down | Air cooling | |
Shell material | SPCC cold rolled steel plate | |
Supports off-grid home energy storage with UPS functionality, allowing users to prioritize solar energy, storage, or grid power.
