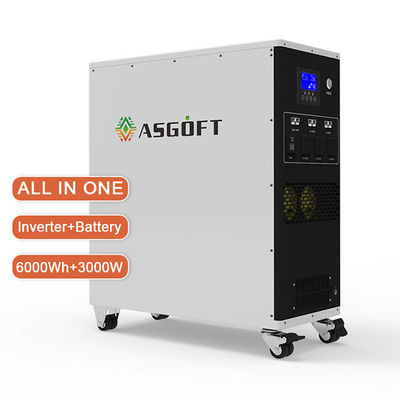

Solar Charged Portable Power Bank 6Kwh Battery and 3Kw Inverter Portable Mobile Power
Suitable for high-power air conditioners, washing machines, refrigerators.
Can charge large forklifts and electric vehicles.
Can be directly integrated with solar panels to create a solar power system without the need for additional inverters and solar controllers.
It can also charge from the grid and store energy for backup during power outages or when household electricity demand exceeds supply.
Product Specifications | ||
| Model | BESS-ASM-6000WH-3000W | |
Battery Pack | Nominal voltage | 25.6V |
Nominal capacity | 235Ah | |
Rated Energy | 6016Wh | |
Charge cut off voltage | 29.2V (cut-off current 5A) | |
Standard charging current | 100A | |
Maximum charging current | 150A | |
Discharge cut-off voltage | 20V | |
Standard discharge current | 100A | |
Maximum charging current | 150A | |
Cycle life | >3000 Cycle @80%DOD, at 25°C | |
Battery Type | Lithium iron phosphate | |
Operating temperature | Charge:0～55℃ | |
Discharge:-20～65℃ | ||
Inverter parameters | Rated power | 3200VA/3000W |
Input voltage | 170-280VAC | |
Input frequency | 50Hz/60Hz | |
The output voltage | 230VAC | |
Output frequency | 50Hz/60Hz | |
Efficiency | 93% | |
Output waveform | Pure sine wave | |
PV parameters | Rated power | 3000W |
Open circuit voltage | 90V-450VDC | |
Maximum charging current | 80A | |
Efficiency | 98% | |
Size | 670*560*270mm | |
Weight | 86.3±0.5KG | |
Cool down | Air cooling | |
Shell material | SPCC cold rolled steel plate | |
